Foot Pedal Control Automatic Cable Tie Applicator With A Fixed
Cable tie Gun

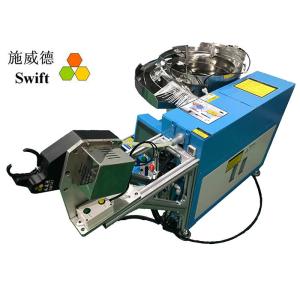

SWT25120F automatic cable tie applicator consists of a fixed cable
tie gun, a host machine and a vibration bowl. It could hold items
together with cable ties, and cut the excess zip ties off. All
operations would be done in 1S once tread the pedal.
Product features
1. Using loose cable ties, vibration feeding, transferred them to
cable tie gun via hose.
2. Cable tie gun could be fixed in the bench or assembly line. So
operators could hold items by two hands.
3. With heating function. In cold days, you could adjust this
function to protect cable ties toughness.
4. With a foot pedal. It begins to wrap, tighten and cut off cable
ties once tread the pedal.
5. The binding forces are adjusted by turning a knob.
6. Be able to handle the work pieces with step features.
7. With wheels and foot cups.
Product parameters
| 1 | Automatic cable tie gun– SWT25120F |
| 2 | Description | Automatically wrap, pull and tighten cable ties, cut the excess zip
ties off one tread the pedal. |
| 3 | Cable tie type | Bulk zip ties, T25120 |
| 4 | Cable tie size | width | 2.5mm |
| Length | 120mm |
| Tie thick | 1.1mm |
| 5 | Tensile strength | 8kg |
| 6 | Bundling diameter | Ø2 –ø22mm |
| 7 | Operation speed | 1S/cable tie |
| 8 | Power supply
| AC220-AC240V, 50/60Hz; Euro cords |
| 9 | Pneumatic pressure | 5 Kg/cm² |
| 10 | Tension force | Adjustable |
Packing details
| Packing details of SWT25120F |
| The host machine / wooden case | G.W./kg | 98kg |
| Packing Size/cm | L78 * W74 * H90cm |
| The vibration bowl / wooden case | G.W./kg | 70kg |
| Packing Size/cm | L72 * W65 * H96cm |
| Total G.W. | 168kg( estimated) |
Applications
Wires with PVC sleeve, bags sealing , the work pieces with step
features and so on.
Why choose SWIFT automatic cable tie gun?
1. SWIFT Automation Technology is the leader of automatic cable tie
tool in the world. No one would be more familiar to this machine
than us.
2. There are more than 30+ patents in this field. Handheld
automatic cable tie gun using loose cable ties is created by our
company.
3. 300+ well-known companies all have purchased our machines. We
have a rich experience in serve such big company.
FAQ
| FAQ |
| Questions | Answers |
| 1. What is MOQ? | 1. MOQ: 1pcs |
| 2. What is the lead time? | 2. Machine would be ready within 15working days after receive
payment. |
| 3. Can I use cable ties W3.6 * L100mm or W2.5 * L100mm in this
machine SWT25120F? | 3. No, you can’t. SWT25120F can only deal with cable ties W2.5 *
L120mm. |
| 4. Can I use our cable ties W2.5 * L120mm in SWT25120F? | 4. In general, it is ok to use other same size. We suggest you
sending some to us to check. |
Packing picture
