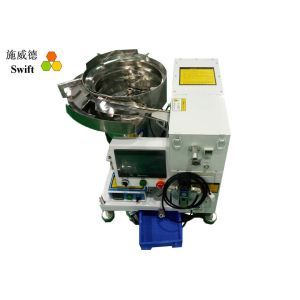

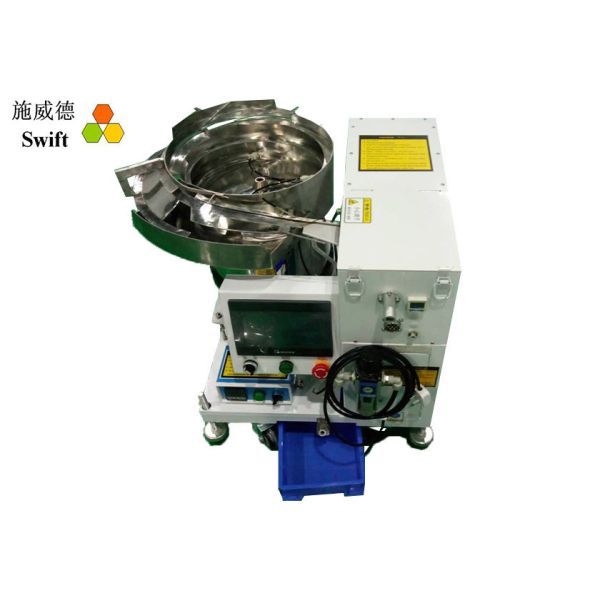

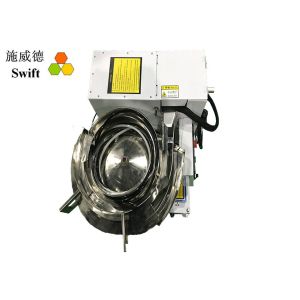

    Easy Operate Automatic Cable Tie System / Handheld Cable Bundling Machine

    Ask Lasest Price
    Brand Name : Swift
    Model Number : SWT36120H
    Certification : CE
    Price : Negotiation
    Payment Terms : T/T
    Supply Ability : 100pcs / month
    Delivery Time : 10 -15days
    • Product Details
    • Company Profile

    Easy Operate Automatic Cable Tie System / Handheld Cable Bundling Machine

    Easy Operate Handheld Automatic Cable Tie Applicator In Fast Bundle Speed


    The machine, SWT36120H is with a handheld cable tie gun. Once pull the trigger, it would start to wrap, pull and tighten zip ties, cut off the excess tail and collect them in plastic boxes.


    How to operate the Nylon Cable Tie Machine ?


    Install the vibration bowl – Install the gun head to the host machine – Put loose cable ties into the bowl – Power on – Select “AUTO” – Pull the trigger in the gun head – Start to bundle.


    Remark:

    The machine would be divided into three departs and they are packed in two wooden case.

    So you need to install the vibration bowl and the cable tie gun in the host machine in the first time use.


    Product advantages


    1. Use loose cable ties and reduce the cost.


    2. Ergonomic cable tie gun is comfortable to hold and operate.


    3. Big touch screen is easy to manage and operate.


    4. Auto diagnosing and dealing function. If cable tie fails to bundle, the machine would alarm and deal with problems by itself..


    5. The binding force is adjusted.


    6. Power supply: AC220 – AC240V, 50/60Hz; Euro standard plugs.


    Product parameters


    1Automatic cable tie applicator / cable tie gun – SWT36120H
    2DescriptionAutomatically wrap, pull and tighten cable ties, cut the excess zip ties off and collect them into a box.
    3Cable tie typeBulk zip ties
    4Cable tie sizewidth3.6mm
    Length120mm
    Tie thick1.2mm
    5Tensile strength12kg
    6Bundling diameterØ3 –ø23mm
    7Operation speed0.9S
    8

    Power supply


    AC220-240V, 50/60Hz
    9Pneumatic pressure5 Kg/cm²
    10Tension forceAdjustable

    Packing details


    Packing details of SWT36120H
    The host machine / wooden caseG.W./kg99kg
    Packing Size/cmL100 * W101 * H90cm
    The vibration bowl / wooden caseG.W./kg75kg
    Packing Size/cmL80 * W70 * H103cm
    Total G.W.174kg( estimated)


    Applications


    ApplicationsThe machine bundles objects with cable ties tightly.
    Wire harness industryWirings in boards, power cords, waterproof rings, PCB boards
    Solar energyPhotovoltaic junction box, wires
    White goodsAC component, copper pipe with insulation cotton, air-conditioning condenser pipes, fridge condenser pipes, the clumps etc.
    Medical industryMedical hoses, the connectors.
    Auto industryAuto parts with wires
    OthersFishing net, trinkets etc.
